Groundworks and Drainage for London Residential Projects: What to Expect 2025

London clay (formally the London Clay Formation — a thick deposit of marine clay laid down approximately 50 million years ago) underlies the majority of Greater London and is a shrinkable clay soil: it expands when wet and shrinks when dry, causing heave and settlement in foundations that are not deep enough to reach below the zone of seasonal moisture variation. The depth of the zone of seasonal moisture variation in London clay depends on: proximity to mature trees (the root systems of mature trees — particularly London plane, oak, poplar, willow, and cherry — significantly extend the depth of desiccation of London clay and the required foundation depth); drainage patterns (well-drained areas dry more deeply in summer); past and present tree cover (clay that previously had mature tree cover may retain a deeper desiccated zone even after trees are removed). NHBC Standards Chapter 4.2 (Foundations) and BRE Digest 240 set out the foundation depth requirements for building on clay soils with tree influence. In the London clay zone, typical strip foundation depths for a standard load-bearing wall with no significant tree influence: 1.0m depth below ground level. With minor tree influence (medium trees — up to 12m mature height — within distance equal to mature height): 1.5-2.0m deep strip foundation or engineer-designed pile solution. With significant tree influence (large trees — 12m+ mature height — within influence zone): 1.5-3.0m deep strip foundations or engineer-specified pile solution (typically CFA or mini-pile). In many London residential rear gardens, mature boundary trees (in the rear or side return, the neighbouring garden, or the street) mean that a standard 1.0m deep strip foundation is insufficient. The structural engineer's foundation recommendation (informed by a ground investigation if required) determines the required foundation depth and type. Impact on cost: deeper strip foundations require more excavation (additional cost in London: typically £500-£2,000 per metre of additional depth for a standard rear extension with modest structural complexity). Piled foundations for extensions on highly shrinkable London clay near trees: typically £8,000-£25,000 for a mini-pile or CFA pile solution under a small-medium rear extension — compared to £3,000-£8,000 for a conventional strip or trench fill foundation at 1.0-1.5m depth.

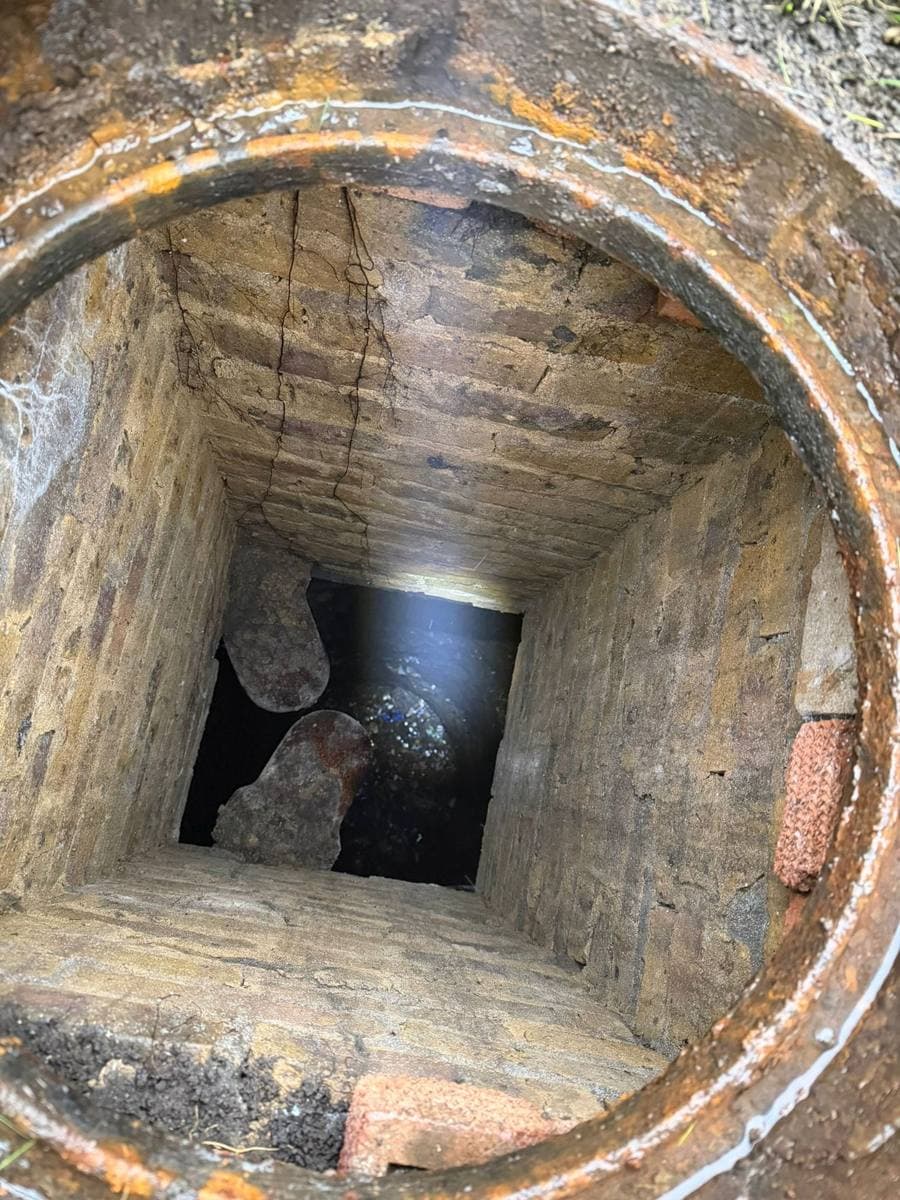

The majority of London's residential drainage network is served by a combined sewer system — a single pipe network that carries both foul sewage and surface water (rainwater) to the sewage treatment works. In Victorian London, these sewers were built beneath the rear gardens and streets of residential properties and have been in continuous use since the late 19th century. Any building work that proposes to build over, or within 3 metres of, a public sewer (a sewer that is adopted by Thames Water — as most London residential sewers are) requires a Build-Over Agreement from Thames Water under Section 174 of the Water Industry Act 1991 before construction can begin. Failing to obtain a Build-Over Agreement before building over or near a public sewer is a serious breach of the Water Industry Act, can result in enforcement action and demolition of the structure, and will make the property unmortgageable (because the title report will disclose the proximity of the public sewer and the absence of a Build-Over Agreement). Build-Over Agreement process: Step 1 — confirm whether a public sewer is present: Thames Water provides a public sewer record search (formerly called a CON29DW search as part of a conveyancing enquiry — also available directly from Thames Water as a Build-Over application). The sewer record search shows the location of all recorded public sewers on or near the property. Note that sewer records are not always accurate — CCTV drainage survey may be required to confirm the precise location and depth of a sewer. Step 2 — determine whether Build-Over Agreement is required: a Build-Over Agreement is required where the proposed extension: builds within 3 metres horizontally of a public sewer of up to 160mm diameter; builds within 3 metres of the edge of a public sewer of 160-375mm diameter; builds over a public sewer of any size (structure above the sewer line). Step 3 — apply to Thames Water: Thames Water Build-Over Agreement applications are submitted with: a completed application form; structural engineer's drawings showing the proposed foundations and the structural loading on the ground near the sewer; evidence that the design is in accordance with Thames Water's Build-Over guidance (including minimum foundation depth below the sewer invert, bridging requirements, and access chamber requirements). Thames Water fees for Build-Over Agreements: Basic Build-Over Agreement (Build-Over Assessment only, no CCTV survey required): £328 (as of 2025). Full Build-Over Agreement (CCTV survey of the sewer before and after construction, agreement documents): from £850-£2,500+ depending on the sewer size and complexity. CCTV drainage survey cost (London, if required independently as part of the application): £250-£600 for a typical residential rear garden sewer survey. Programme: Thames Water Build-Over Agreement applications typically take 6-12 weeks from submission to approval — this lead time must be allowed for in the project programme. Thames Water rejection: in some cases (where a sewer is very shallow or the structural solution cannot adequately protect it), Thames Water may reject the Build-Over Agreement application. Where a Build-Over Agreement cannot be obtained, the extension design must be revised to avoid the build-over zone — increasing the minimum distance from the sewer beyond the 3m threshold, typically by reducing the extension depth or reconfiguring the layout.

Every extension in London requires drainage design to handle: Foul drainage (sewage from any WC, basin, shower, or kitchen in the new extension). Surface water (rainwater from the extension roof). Foul drainage connection options for London extensions: Connect to the existing foul drainage system within the property (the most common approach — the new extension's foul drainage connects to the existing underground drainage run from the house). Requirements: adequate capacity in the existing drainage system; connection within Building Control approved depth and gradient. Insert a new connection to the public sewer (where the property's existing drainage system is undersized or where the new extension is geographically remote from the main house drainage). Thames Water Connection application may be required. Surface water drainage options for London extensions: Connect to existing surface water drain (if the property has a separate surface water drain or soakaway — less common in inner London, where most properties are on combined sewers). Connect to existing combined sewer (standard for most inner London properties where a Build-Over Agreement allows). Soakaway or permeable surface (where soil permeability allows — rarely appropriate in London clay). Green roof or blue roof (an alternative approach for large flat-roof extensions — a green roof with substrate and planting retains and delays surface water runoff, which can reduce the surface water connection requirement). Underground attenuation tank with restricted discharge (increasingly required by London boroughs and Thames Water for larger new drainage connections — stores excess surface water and releases at a restricted flow rate to prevent sewer surcharge during heavy rain). Drainage gradient requirements: adequate gradient (fall) in the drain is essential to prevent blockages. Minimum gradients: 1:40 (2.5%) for a 100mm diameter drain running up to 6m. 1:80 (1.25%) for a 100mm diameter drain over 6m (or where a 150mm diameter drain is used). In London, where the existing drainage system is often Victorian and runs at a shallow depth beneath the garden, maintaining adequate gradient for a new connection from a rear extension (which may be at a higher floor level than the original house drainage) can be a design challenge.
